AIRSTATION

In the second version the AIRSTATION systems are equipped with one or more selfsupporting steel frameworks which are prefabricated and transportable by forklift truck: this version is particularly recommended for clients who dispose of internal or suitable spaces where the system can be installed: the skid should be placed and connected to an electricity supply and the medical air network.
The AIRSTATION medical air plants are managed by programmable logic devices which control the process parameters and manage the security alarms in case of abnormal operation.
Data analyzers constantly monitor the air quality, a programmable logic device records the parameters and delivers an alert in case of exceedance of the limit values.
The AIRSTATION systems are equipped with an alarm repeat system, which is connected with the alarm center of the device, and an SMS notification service.
The AIRSTATION plant guarantee a high reliability and economy level service, standing by during all the time in which medical air is not requested and modifying the empty/refill interval of the compressors, in accordance with the maximum load required.

AIRSTATION is equipped with potential-free contacts which signal breakdowns and alarms to the alarm system of the medical gas stations. Furthermore it is possible to connect AIRSTATION to the Ethernet network of the hospital center through the Ethernet Module (optional) and display the alarms and the operating status on a different touch screen display installed in a controlled place (ex: Reception).
Thanks to the GSM module (optional) the AIRSTATION conveys the alarm signals via SMS to more telephone numbers (Account Technician, Technical Account Manager of the hospital center, etc.). The technician who receives the alarm SMS can send the AIRSTATION a series of SMS to:

  • Reset the machinery, ex: after a sudden change of voltage
  • Turn off or start again the machinery
  • Silence the alarm sound; this option is useful in case the machinery is installed in an unattended place, especially in the night, and the acoustic signal disturbs the patients or other people.

Medical Air Plants “AIRSTATION”

The AIRSTATION medical air plants are compressed air systems built for the on-site medical air production, in accordance with the requirements of the Official European Pharmacopeia.
The range of AIRSTATION plants satisfies a medical air consumption of 2.000 Nm3/h. at 1, 2, 3 sources, respecting the EN 7396-1 standarsd and guaranteeing a high reliability and economy level.
The AIRSTATION plants are available on chassis with cab or on skid.
In the first version the AIRSTATION plants are equipped with a insulated and air-conditioned transportable cabin; this version is particularly recommended if the hospital does not have an enclosed space or a suitable room where the compressed air system can be installed: an outdoors space where the AIRSTATION can be placed and connected to an electricity supply and the medical air network will be sufficient.

The control system of the AIRSTATION is easy and comfortable thanks to its new software EasyView, a color touch screen 7” display that enables the following operations:

Displaying the operation parameters

  • Medical air pressure
  • Dew Point Analysis
  • CO2 Analysis (optional)
  • CO Analysis (optional)
  • SO2 Analysis (optional)
  • NO Analysis (optional)
  • NO2 Analysis (optional)
  • 02 Analysis (optional)

Consulting the alarm and event list

  • Displaying the alarm log by date and time
  • Displaying the event list by date and time
  • Downloading the data on a USB flash drive in an Excel file

Typical application with an AIRSTATION as main source, a cylinder ramp as secondary source and another cylinder ramp as emergency source. In accordance with the UNI EN ISO 7396-1

Typical application with an AIRSTATION as main source, an AIRSTATION as secondary source and a cylinder ramp as emergency source. In accordance with the UNI EN ISO 7396-1

Typical application with an AIRSTATION as main source, an AIRSTATION as secondary source and an AIRSTATION as emergency source. In accordance with the UNI EN ISO 7396-1

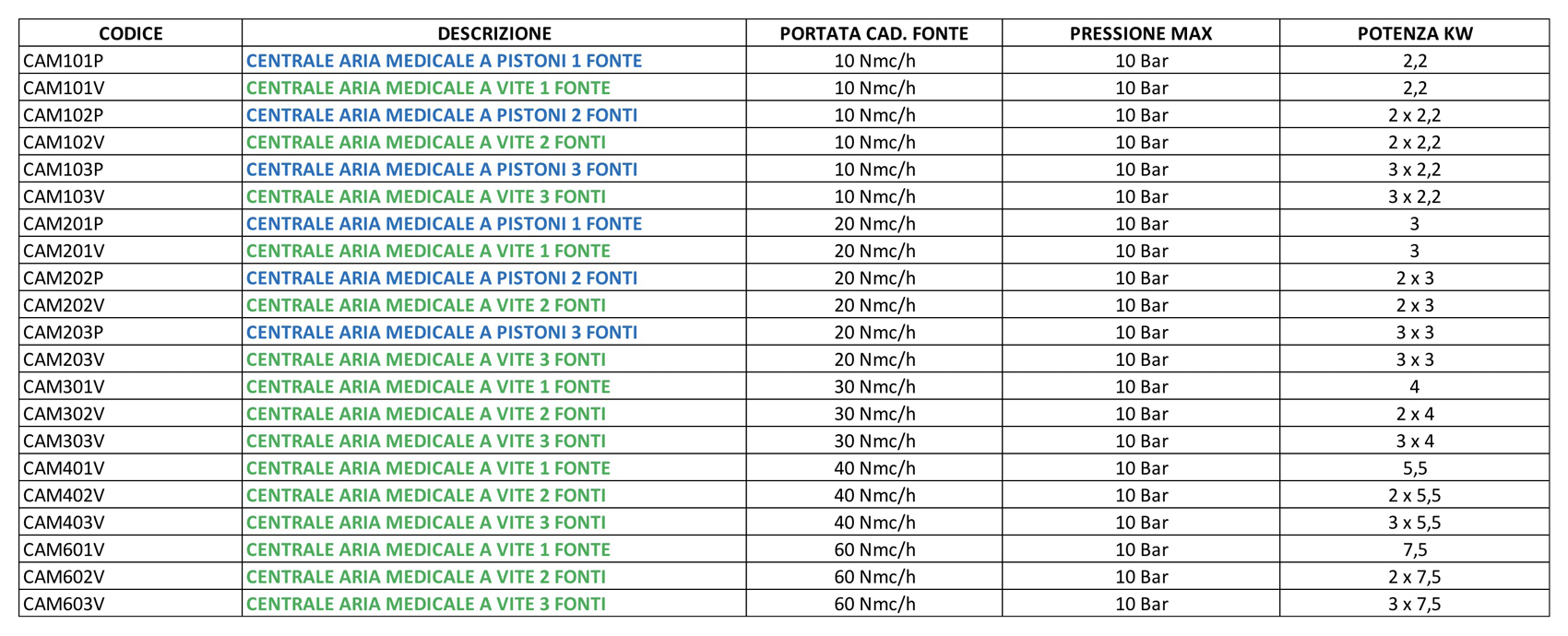

Technical specifications

All the medical air production systems are CE marked as Medical Devices IIb class in accordance with the Directive 93/42 CEE and PED according to the G module of the Directive 97/23/CE.
